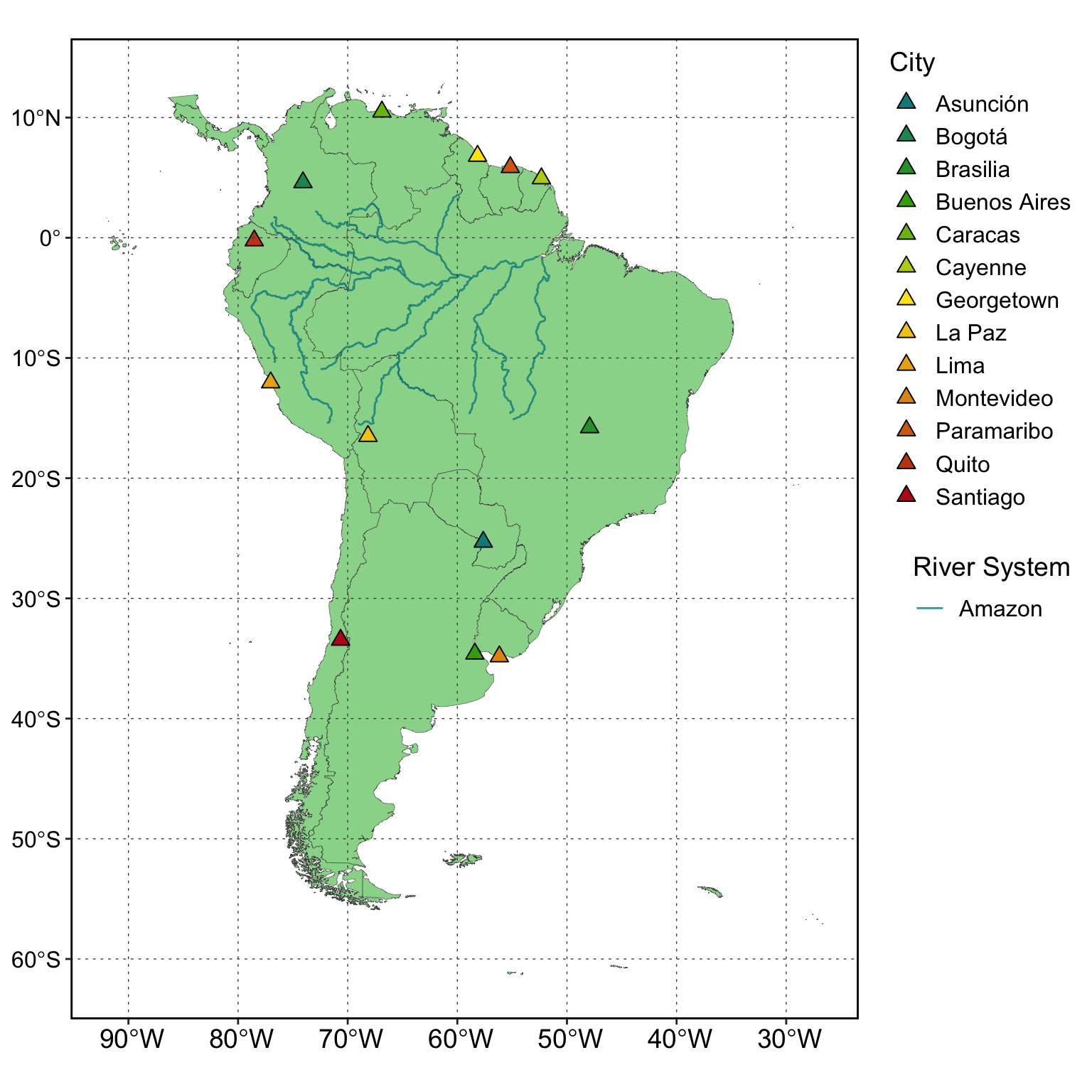

An Introduction look at spatial analyses, plotting, manipulation and combination.
Published

October 10, 2023

Data Types

Generally, when we talk about spatial data the minimum requirements are having some form of spatial information (often called geometry or shape) and some additional information. This spatial information is normally an x and a y coordinate (but may contain z and time).

Vector Data

The most common spatial data is collectively called Vector Data and is generally more discrete spatial, such as individual points, lines or polygons. For example, we might have the location of capital cities (Point) or the route of a river system (Line) or shape of country borders of a country (Polygon).

Raster Data

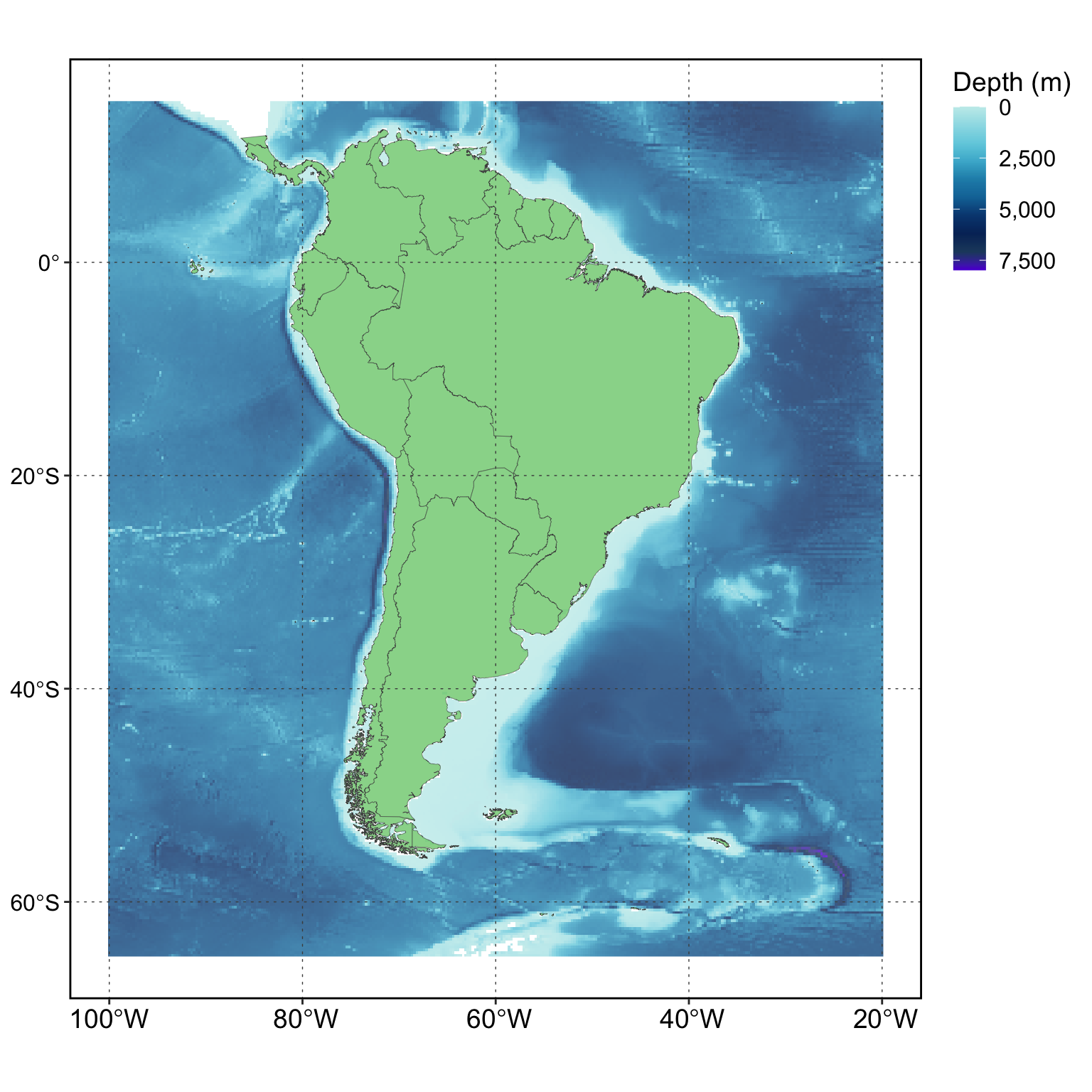

Another common spatial data style is Raster Data, which is more continuous spatially and is sometimes called a spatial field or gridded data. For example bathymetry or elevation of an area will be a grid of x and y spatial cells with a bathymetry or elevation value for each ‘cell’ of the grid.

Spatial Basics: Vector Data

Create Vector Data

As we see above, we can combine all these data types to make displays of our data. But also we can combine these data types to perform more complex manipulations or analyses. First of all lets bring in some vector data with the sf package. The sf package allows us to bring in our vector data easily and inspect, manipulate and plot it in a very similar way to using a normal dataframe. The only difference is that we have a column called geometry that stores the spatial data for each row. Above in the map of south america with the amazon and capital cities we had a combination of different vector spatial data.

The first data type, point data can be created by ourselves in r, without having to read any data in. First we make a data frame with the information of each point (latitude, longitude, name), then we use sf to convert this df to an sf object, telling sf which columns are our geomtry info and what coordinate reference system we are working in. This wasn’t very automatic as I found the values online and copy and pasted them into r.

library(tidyverse)
library(sf)

Points_df<-data.frame(
  City=c(
    "Brasilia", "Quito", "Santiago",
    "Lima", "Buenos Aires", "La Paz",
    "Bogotá", "Asunción", "Montevideo",
    "Caracas", "Cayenne", "Paramaribo",
         "Georgetown"
  ) ,
  Long=c(-47.9297,-78.5250,-70.6483,-77.0282,
         -58.4004,-68.1500,-74.0818,-57.6359,
         -56.1674,-66.8792,-52.3333,-55.1668,-58.1553),
  Lat=c(-15.7797,    -0.2299,    -33.4569, -12.0432,
        -34.6051, -16.5000,   4.6097, -25.3007,
        -34.8335, 10.4880, 4.9333, 5.8664, 6.8045)
  )

head(Points_df)
          City     Long      Lat
1     Brasilia -47.9297 -15.7797
2        Quito -78.5250  -0.2299
3     Santiago -70.6483 -33.4569
4         Lima -77.0282 -12.0432
5 Buenos Aires -58.4004 -34.6051
6       La Paz -68.1500 -16.5000
Points_sf<-Points_df%>%
  st_as_sf(coords=c("Long","Lat") )  %>%
  st_set_crs("EPSG:4326")

head(Points_sf)
Simple feature collection with 6 features and 1 field
Geometry type: POINT
Dimension:     XY
Bounding box:  xmin: -78.525 ymin: -34.6051 xmax: -47.9297 ymax: -0.2299
Geodetic CRS:  WGS 84
          City                  geometry
1     Brasilia POINT (-47.9297 -15.7797)
2        Quito   POINT (-78.525 -0.2299)
3     Santiago POINT (-70.6483 -33.4569)
4         Lima POINT (-77.0282 -12.0432)
5 Buenos Aires POINT (-58.4004 -34.6051)
6       La Paz      POINT (-68.15 -16.5)

We can see when we inspect the sf object it has more spatial information that sf has assigned to the df when converting. As r recognises an sf object as being spatial now we can use the base plot function to look at the point locations. This isn’t an amazing plot as there is not much information in the sf object, just city names.

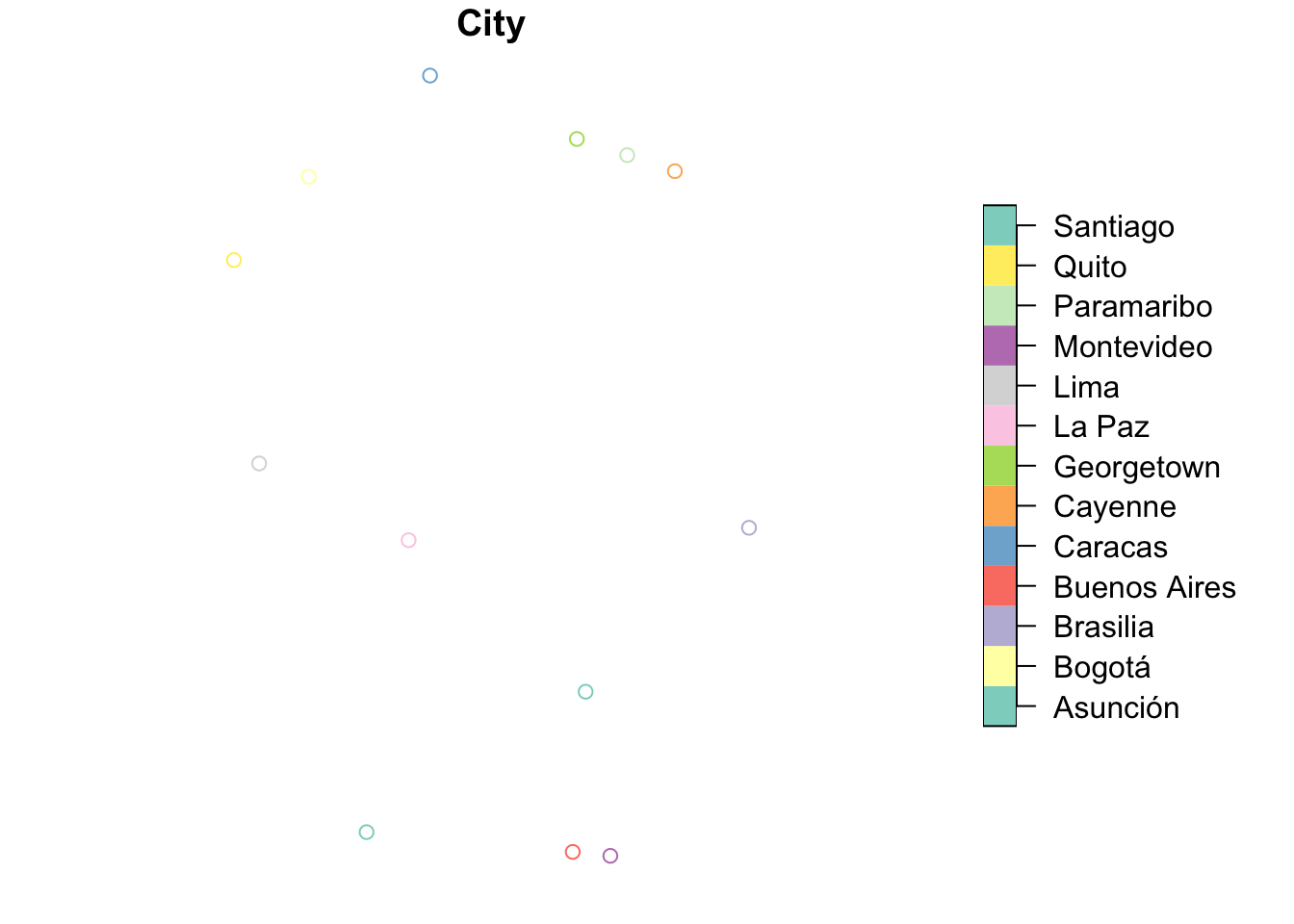

plot(Points_sf)

As it acts just like any other dataframe we can add data, subset, manipulate and join in the same way we would with tidyverse.

Fake_ElevationData<-runif(13,min=0,max=3000)

Points_sf_Elevate<-Points_sf %>%
  mutate(Elev=Fake_ElevationData)

Location_Bogota<-Points_sf_Elevate %>%
  filter(City=="Bogotá")

Load Open Access Vector Data

We can also perform analyses between different spatial objects. So if we get spatial information for boundaries of countries in the world we can use our capital cities to join and subset the dataset. We will use the naturalhires suite of packages to get polygons of world boundaries. Lets bring in the data using a 10 metre resolution, convert it to an sf object and check it has worked well.

library(rnaturalearth)
library(rnaturalearthdata)
#remotes::install_github("ropensci/rnaturalearthhires")
library(rnaturalearthhires)

world_map <- sovereignty10 %>%
  st_as_sf()

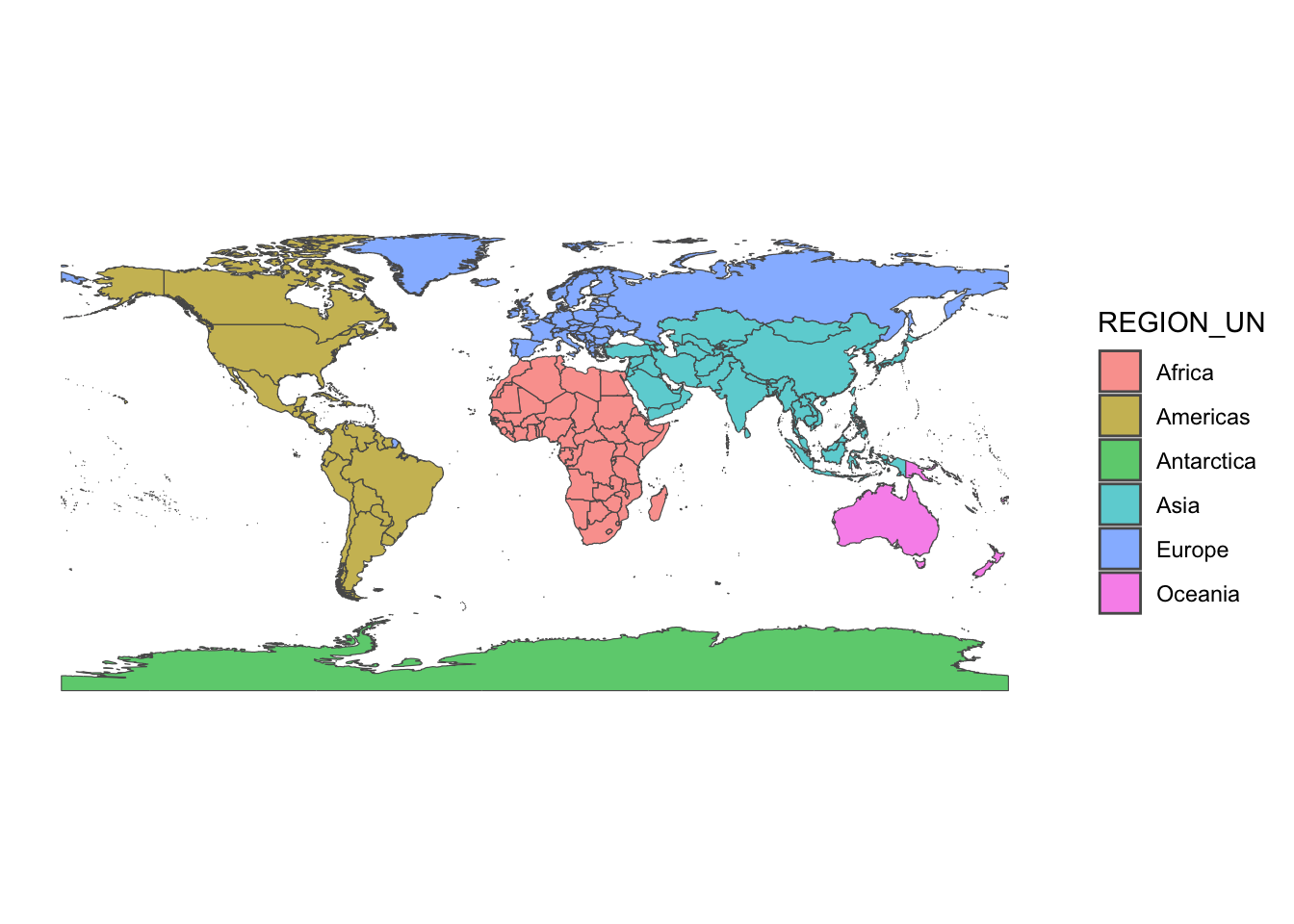

ggplot(world_map)+
  geom_sf(aes(fill=REGION_UN),alpha=0.7)+
  theme_classic()

We can also inspect the information attached to each row in the sf file for each country. But i will select some specific columns of interest to neaten the dataset up first.

world_map<-world_map %>%
  select(SOVEREIGNT,ADM0_A3,CONTINENT,
         REGION_UN,SUBREGION,POP_EST,
         POP_RANK, POP_YEAR, GDP_MD, GDP_YEAR)

head(world_map)
Simple feature collection with 6 features and 10 fields
Geometry type: MULTIPOLYGON
Dimension:     XY
Bounding box:  xmin: -109.4537 ymin: -55.9185 xmax: 140.9776 ymax: 7.35578
Geodetic CRS:  WGS 84
  SOVEREIGNT ADM0_A3     CONTINENT REGION_UN          SUBREGION   POP_EST
1  Indonesia     IDN          Asia      Asia South-Eastern Asia 270625568
2   Malaysia     MYS          Asia      Asia South-Eastern Asia  31949777
3      Chile     CHL South America  Americas      South America  18952038
4    Bolivia     BOL South America  Americas      South America  11513100
5       Peru     PER South America  Americas      South America  32510453
6  Argentina     ARG South America  Americas      South America  44938712
  POP_RANK POP_YEAR  GDP_MD GDP_YEAR                       geometry
1       17     2019 1119190     2019 MULTIPOLYGON (((117.7036 4....
2       15     2019  364681     2019 MULTIPOLYGON (((117.7036 4....
3       14     2019  282318     2019 MULTIPOLYGON (((-69.51009 -...
4       14     2019   40895     2019 MULTIPOLYGON (((-69.51009 -...
5       15     2019  226848     2019 MULTIPOLYGON (((-69.51009 -...
6       15     2019  445445     2019 MULTIPOLYGON (((-67.1939 -2...

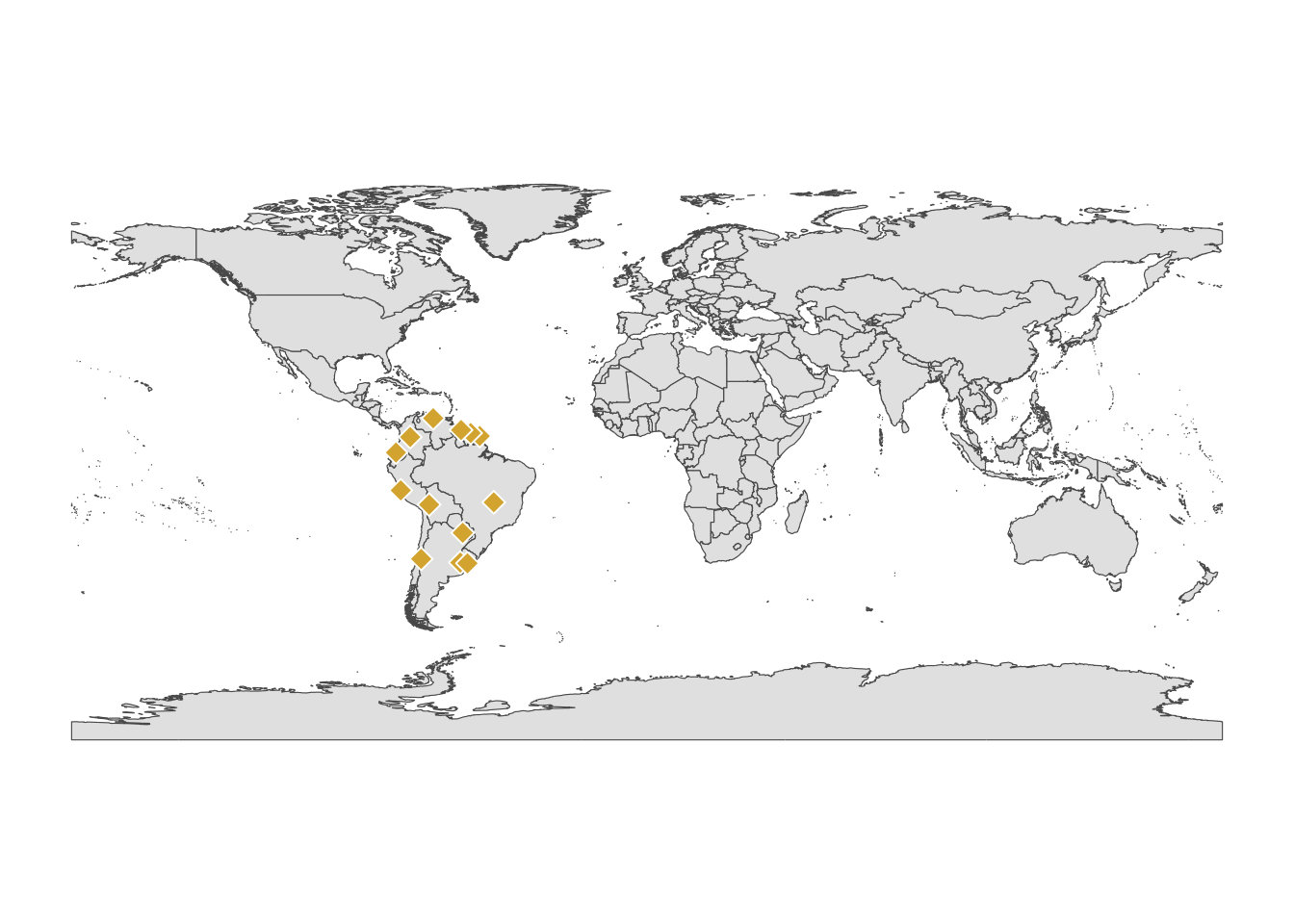

If we plot our cities on top of the countries we can see it is only a select few cities that we have. Maybe we want to extract only the polygons that one of our cities lands inside of spatially?

ggplot(world_map)+
  geom_sf()+
  geom_sf(data=Points_sf,fill="#dbb13b",colour="white",shape=23,size=3)+
  theme_classic()

We can use a join to combine the sf objects. To carry out spatial joins we need to tell sf that we want to work in two d space (not a true sphere).

sf_use_s2(FALSE)
Spherical geometry (s2) switched off
SouthAmerica<-world_map %>%
  st_join(Points_sf,left=F)
although coordinates are longitude/latitude, st_intersects assumes that they
are planar

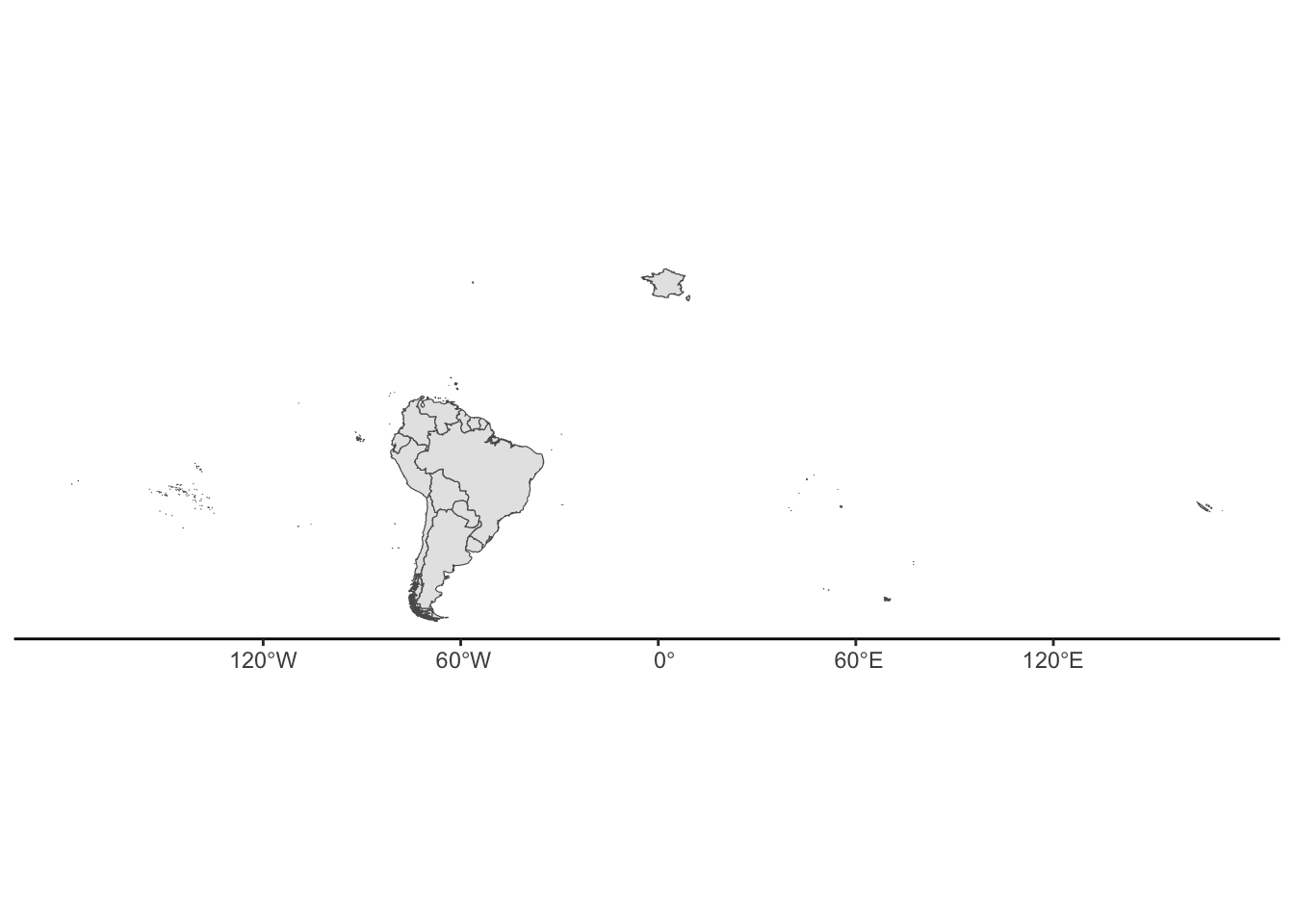

ggplot(SouthAmerica)+
  geom_sf()+
  theme_classic()

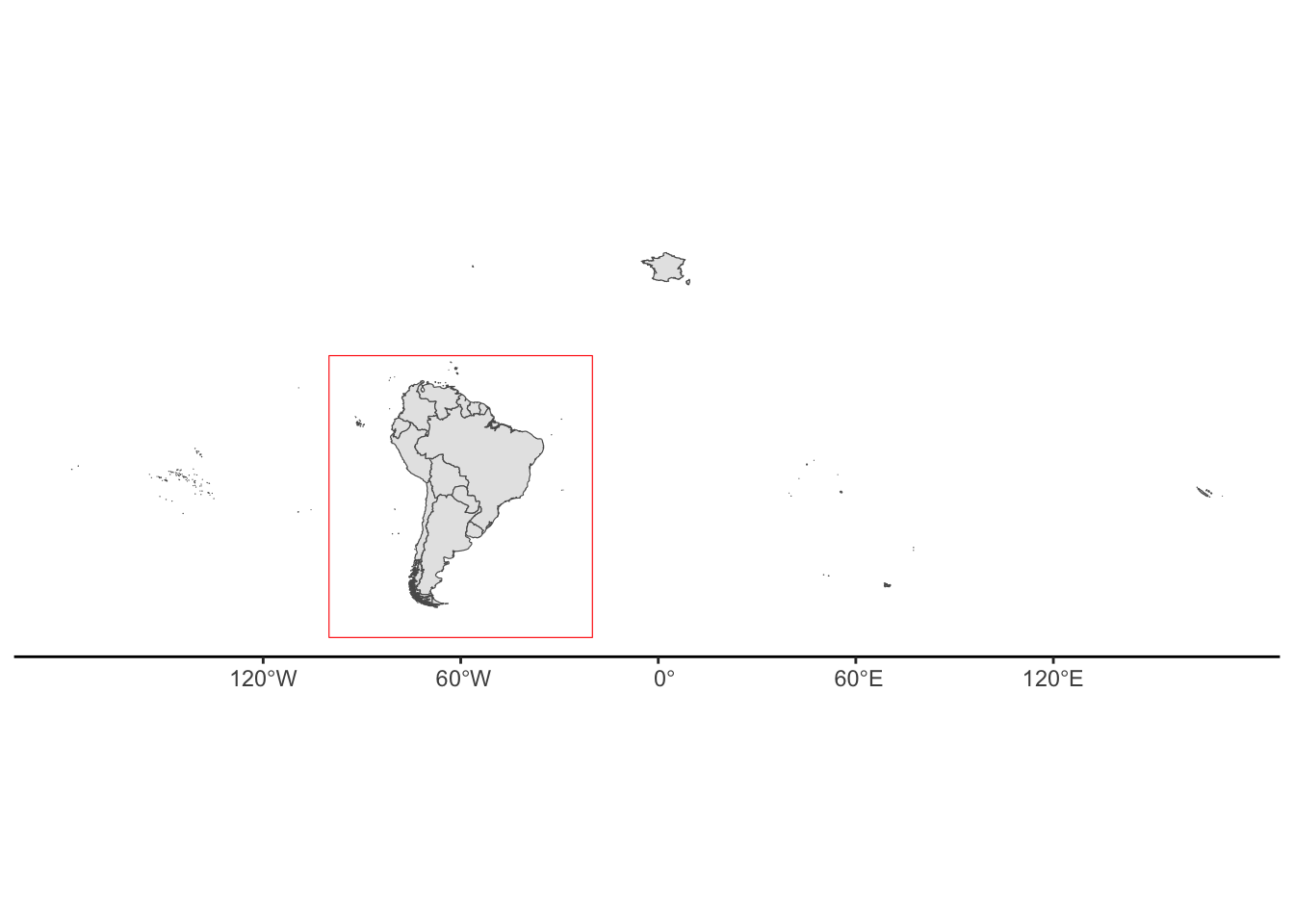

Hmm this is looking a bit weird, we seem to have gained all the French lands. This is because in our world_map sf object, we had multiple polygons per row. Therefore, the row that contained the French Guiana also contained all of Frances territories. So perhaps we want to do a spatial filter. There are many ways to do this, the simplest is to create a bounding box then subset the SouthAmerica sf based on the new spatial object. Lets create a bounding box then plot it over our map to see where it is.

ylims <- c(-65, 20)

xlims <- c(-100, -20)

box_coords <- tibble(x = xlims, y = ylims) %>%
  st_as_sf(coords = c("x", "y"),crs="EPSG:4326") %>%
  st_bbox()%>%
  st_as_sfc()


ggplot(SouthAmerica)+
  geom_sf()+
  geom_sf(data=box_coords,colour="red",fill=NA)+
  theme_classic()

This looks like a good subset for now.

SouthAmerica_subset <- st_intersection(SouthAmerica, box_coords)
although coordinates are longitude/latitude, st_intersection assumes that they
are planar
Warning: attribute variables are assumed to be spatially constant throughout
all geometries

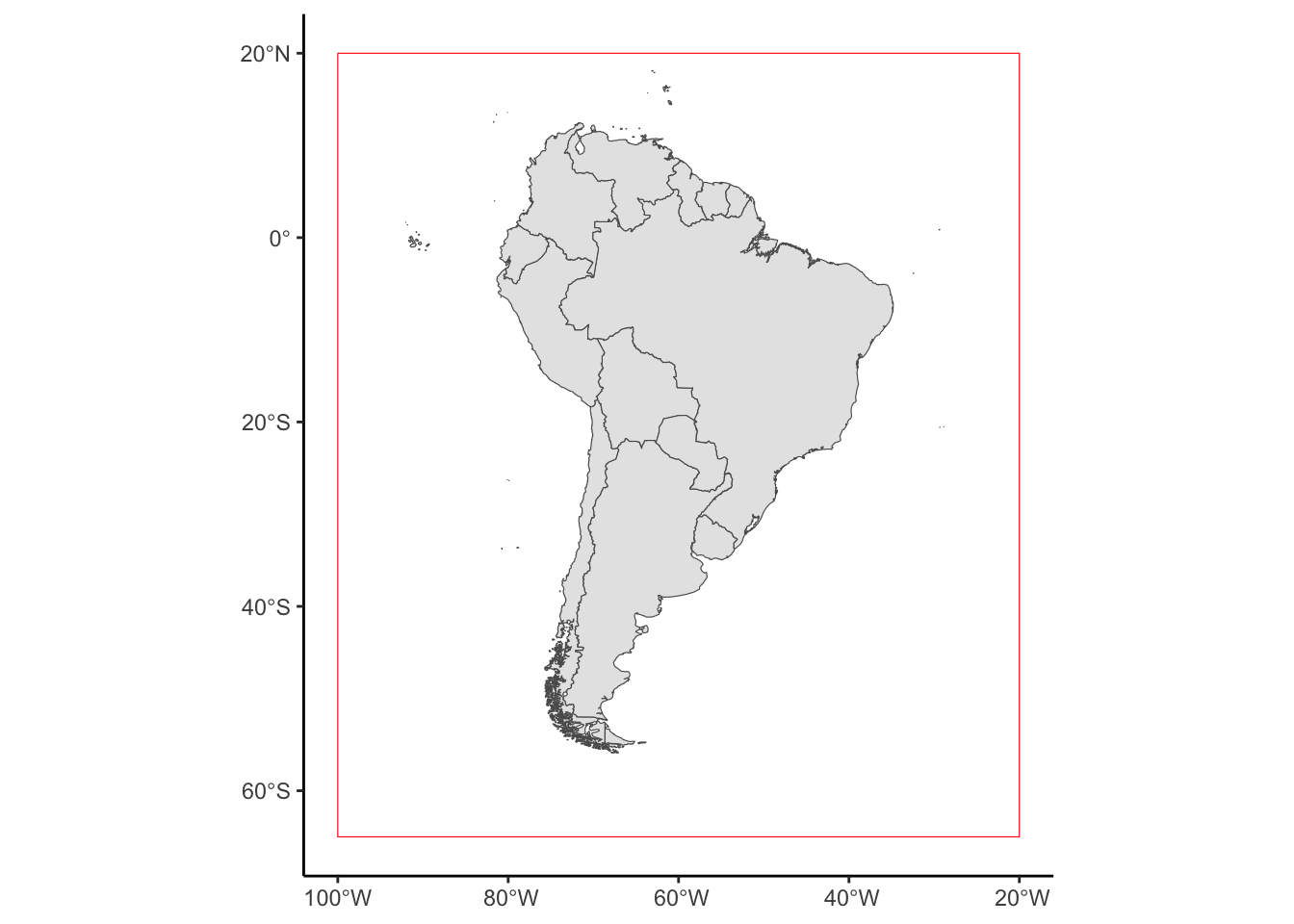

ggplot(SouthAmerica_subset)+
  geom_sf()+
  geom_sf(data=box_coords,colour="red",fill=NA)+
  theme_classic()

Much Better!

Load Local Vector Data

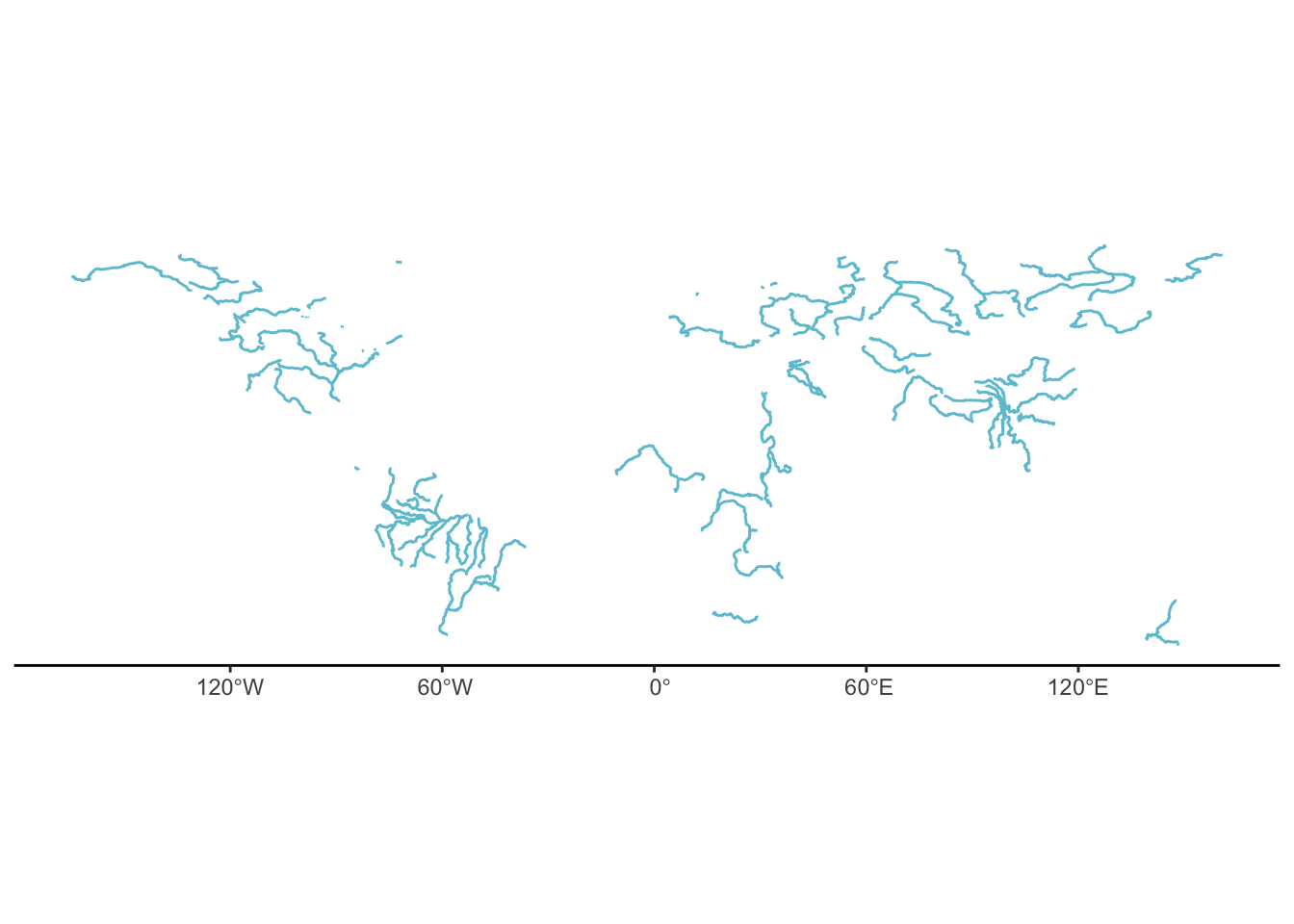

So lets get some Vector Data and load it into r from our local system. I downloaded river shape file from: https://datacatalog.worldbank.org/search/dataset/0042032/Major-Rivers-of-the-World

Rivers<-st_read("majorrivers_0_0/MajorRivers.shp",quiet=T)

ggplot(Rivers)+
  geom_sf(colour="#6cc3d5")+
  theme_classic()

This looks to be correct, so lets do as before and select the rivers that are in south america. We could select the Amazon by using dplyr::filter(SYSEM==“Amazon”) but lets reuse our bounding box from earlier to select all rivers in south america.

SouthAmerica_rivers <- st_intersection(Rivers, box_coords)
although coordinates are longitude/latitude, st_intersection assumes that they
are planar
Warning: attribute variables are assumed to be spatially constant throughout
all geometries

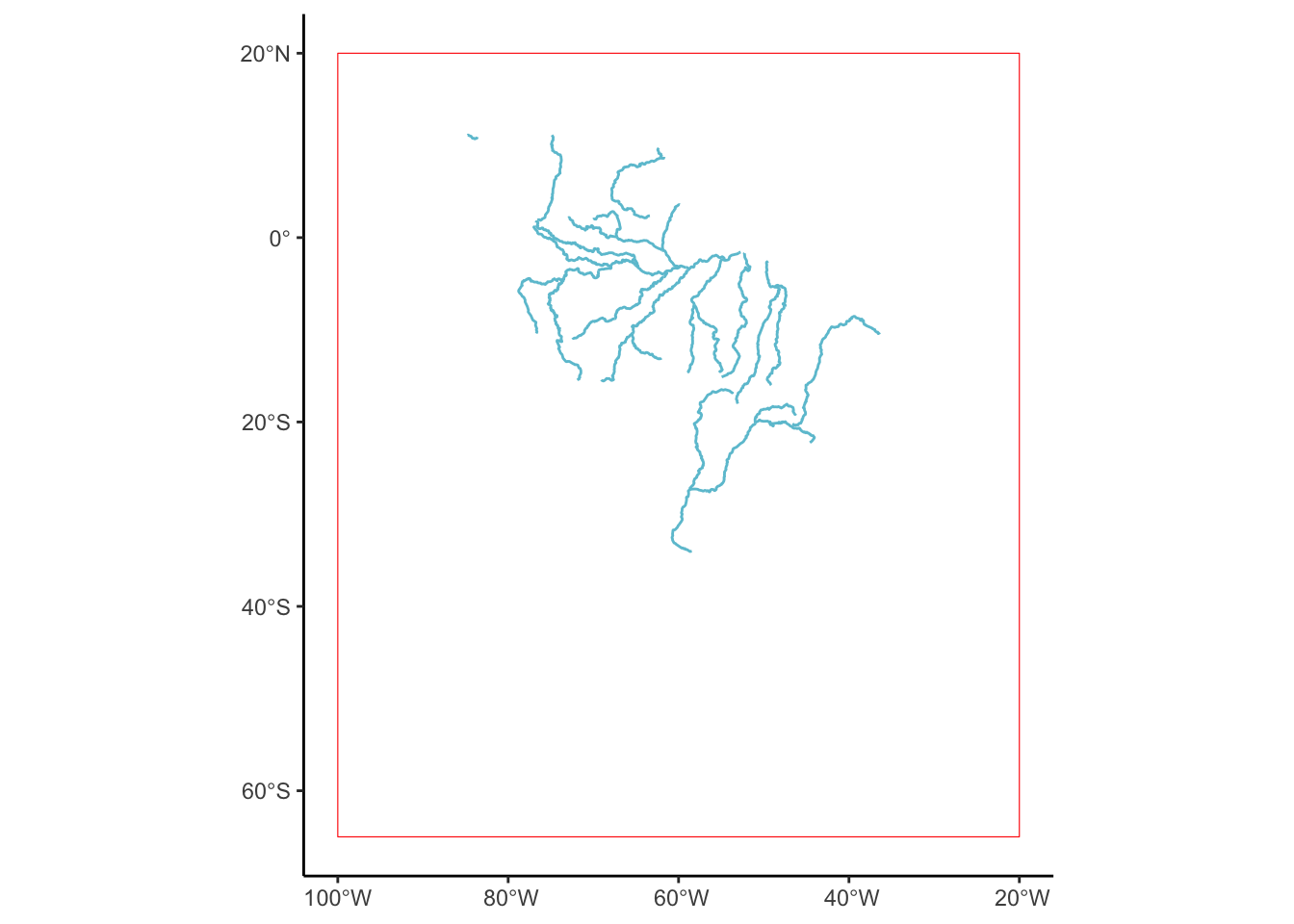

ggplot(SouthAmerica_rivers)+
  geom_sf(colour="#6cc3d5")+
  geom_sf(data=box_coords,colour="red",fill=NA)+
  theme_classic()

There are extra bits of information in this sf that we can treat just like a normal df. How long are all the rivers in south america? (In this shape file that is)

sum(SouthAmerica_rivers$KILOMETERS)
[1] 39700.29

Which is the maximum?

SouthAmerica_rivers %>%
             filter(KILOMETERS == max(KILOMETERS))
Simple feature collection with 1 feature and 4 fields
Geometry type: MULTILINESTRING
Dimension:     XY
Bounding box:  xmin: -73.5079 ymin: -4.459834 xmax: -52.70839 ymax: -1.583623
Geodetic CRS:  WGS 84
    NAME SYSTEM    MILES KILOMETERS                       geometry
1 Amazon Amazon 1890.428   3042.355 MULTILINESTRING ((-73.5079 ...

The Amazon, surprisingly!

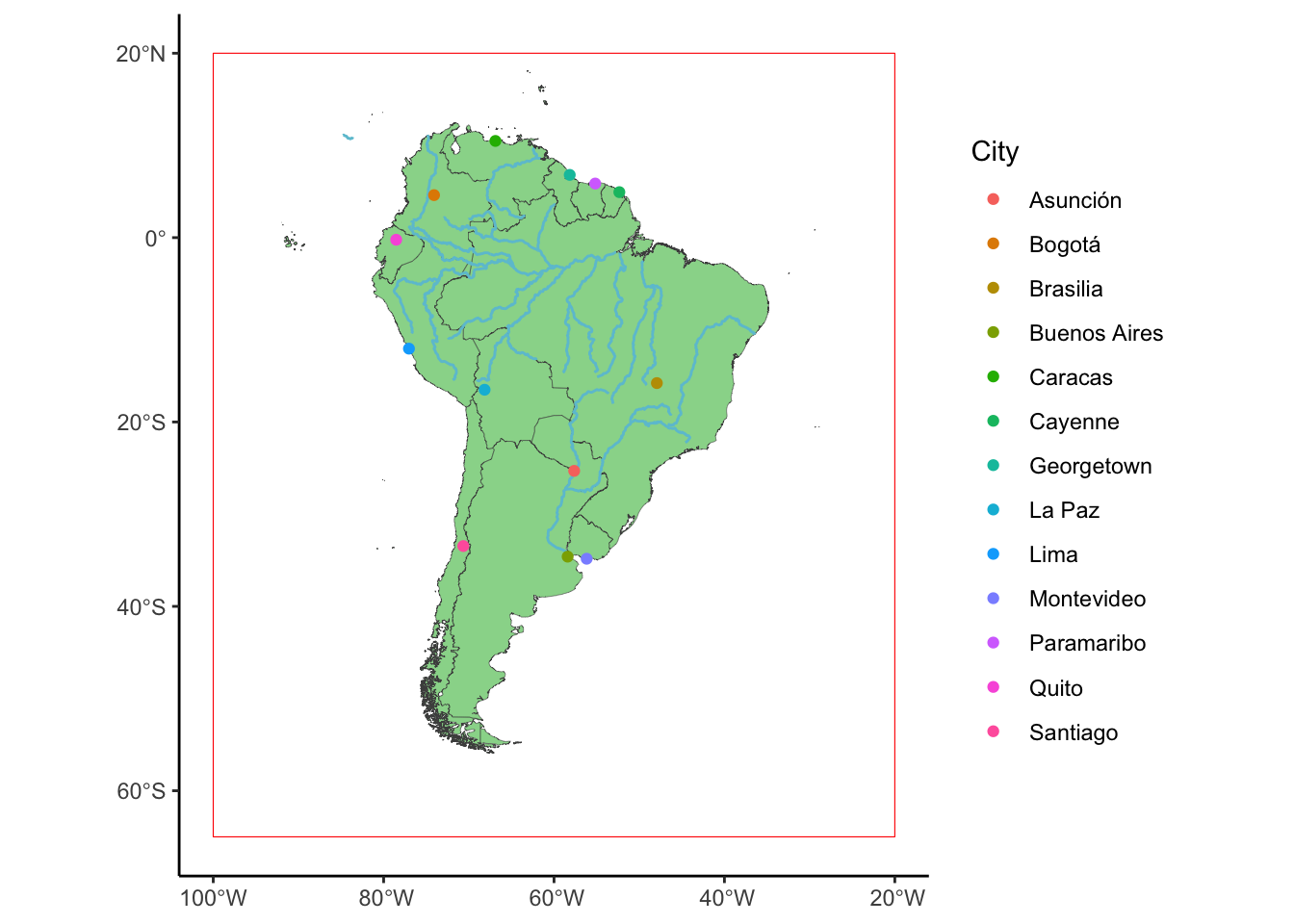

Lets combine all these Vector data into a single plot.

ggplot(SouthAmerica_subset)+
  geom_sf(linewidth=0.1,alpha=0.8,
          fill="palegreen3",colour="grey30")+
  geom_sf(data=SouthAmerica_rivers,colour="#6cc3d5")+
  geom_sf(data=Points_sf,aes(colour=City))+
  geom_sf(data=box_coords,colour="red",fill=NA)+
  theme_classic()

Spatial Basics: Raster Data

Create Raster Data

Like with all data forms in r, see vector data above, we can create our own version of raster data. The most important information for raster data is the dimensions (x, y, z, etc.), the resolution (how big each pixel is) and its extent (where it is in space). We can make a random noise raster, then inspect it by plotting it. Rasters in r generally are well plotted by the base plot() function. But we can also use the tidyterra package, which adds a new geom_* to ggplot.

library(terra)
library(tidyterra)

r<-rast(ncol=100,nrow=100,nlyrs=5)

values(r[[1]])<-sort(runif(1:ncell(r)))

values(r[[2]])<-values(r[[1]])*-1

values(r[[3]])<-sort(runif(1:ncell(r)))

values(r[[4]])<-values(r[[3]])*0.6

values(r[[5]])<-sort(runif(1:ncell(r)))

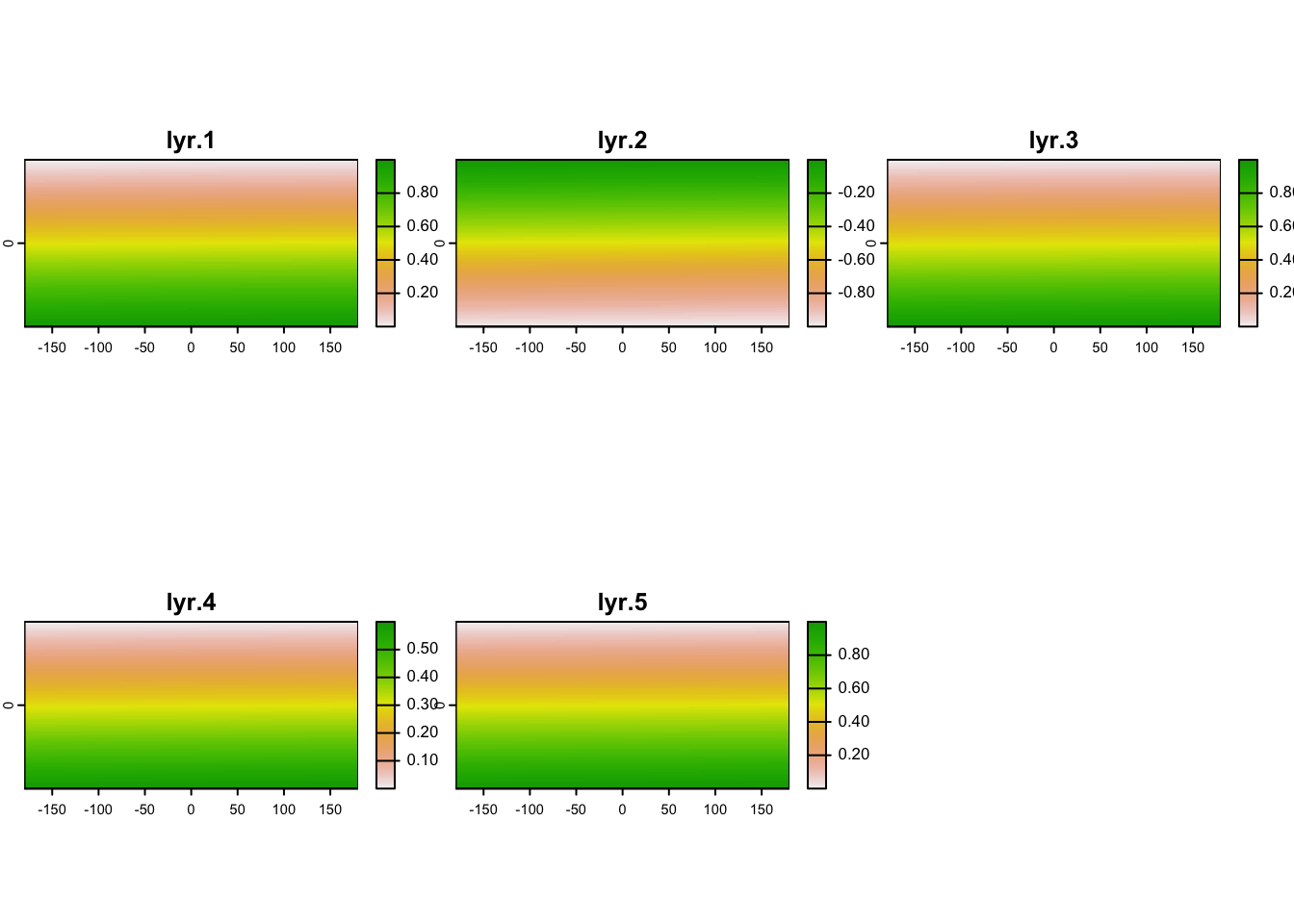

plot(r)

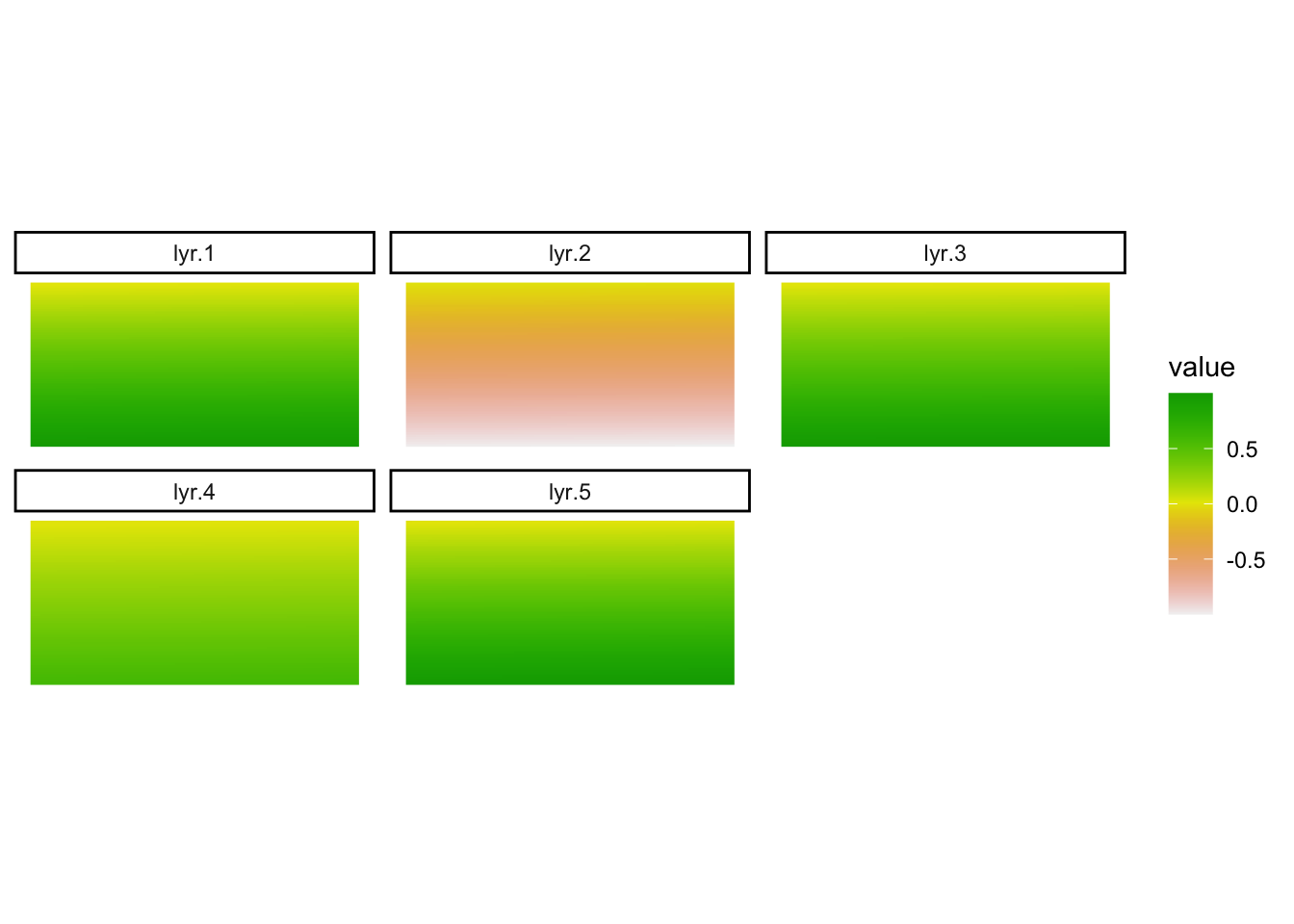

ggplot()+
  geom_spatraster(data=r)+
  facet_wrap(~lyr)+
  scale_fill_terrain_c()+
  theme_classic()

So far we haven’t added any information about where this raster is. We can inspect it to find what are its dimensions, resolution and extent.

dim(r)
[1] 100 100   5
res(r)
[1] 3.6 1.8
ext(r)
SpatExtent : -180, 180, -90, 90 (xmin, xmax, ymin, ymax)

We can see that this raster has 100 rows, 100 columns and 5 layers. Layers are a bit more complicated but they are often visualised like multiple layers of croissant dough (Pâtes feuilletée), with each layer being laid ontop of the other spatially but some containing different information (butter or pastry). It also has a resolution of 3.6 by 1.8 per pixel. And we can see what this information means in relation to its extent. Which is -180 to 180 and -90 to 90, which are the default before we tell raster where the raster is located in space. Once we change the extent we can see that our resolution changes too.

ext(r)<-c(0,100,0,100)

res(r)
[1] 1 1
ext(r)<-c(0,50,0,50)

res(r)
[1] 0.5 0.5

As we see the difference in extent is divided by the dimension to give the resolution. If we don’t pay attention to this we can get some weird results when changing dimension, resolution or extent.

Load Open Access Raster Data

Lets look at some real world raster data.

library(geodata)

avgtemp <- worldclim_global(var="tavg",res=10,path=tempdir())

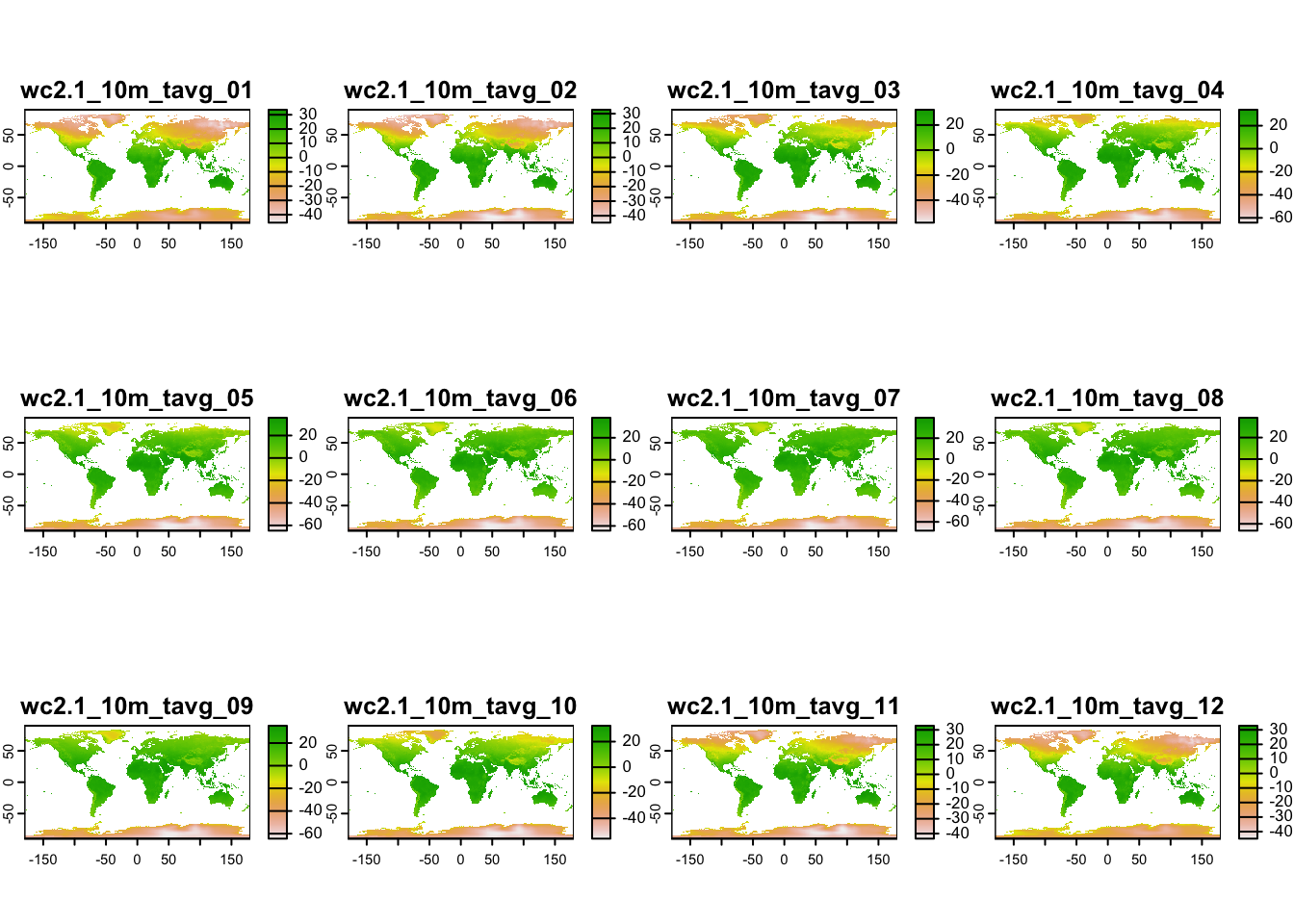

plot(avgtemp)

res(avgtemp)
[1] 0.1666667 0.1666667
dim(avgtemp)
[1] 1080 2160   12
ext(avgtemp)
SpatExtent : -180, 180, -90, 90 (xmin, xmax, ymin, ymax)

This is a big dataset and global, so lets subset it spatially. We can use our bounding box from earlier to do this but first lets convert our sf object to a spatvector object. soatvector and sf objects are very similar, but spatvector plays a bit nicer with spatrasters, whereas sf objects are generally easier to manipulate and analyse using our well practiced dplyr and tidyr skills.

Box_terra<-vect(box_coords)

avgtemp_SoAm<-avgtemp %>%
  crop(Box_terra)

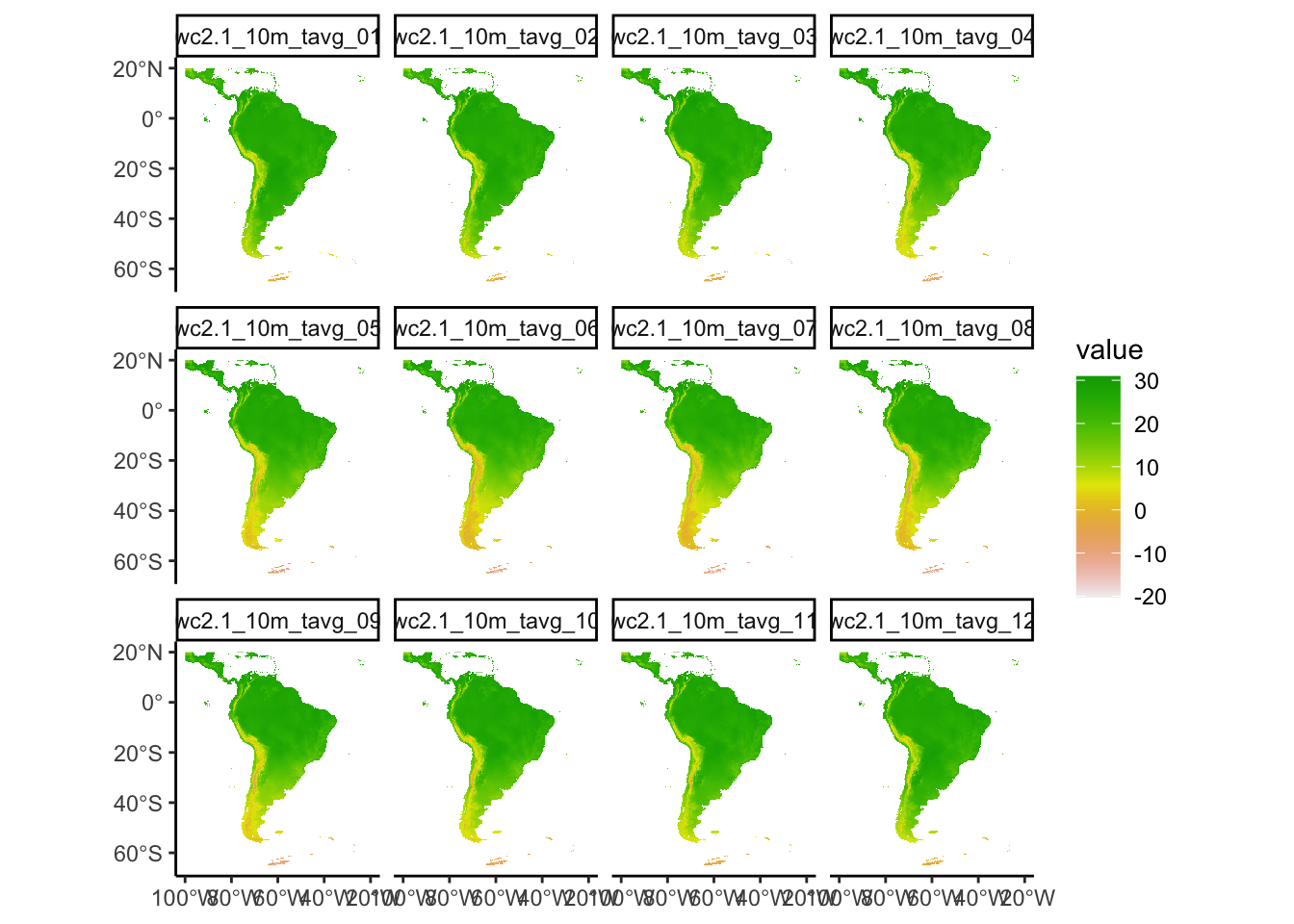

ggplot()+
  geom_spatraster(data=avgtemp_SoAm)+
  facet_wrap(~lyr)+
  scale_fill_terrain_c()+
  theme_classic()

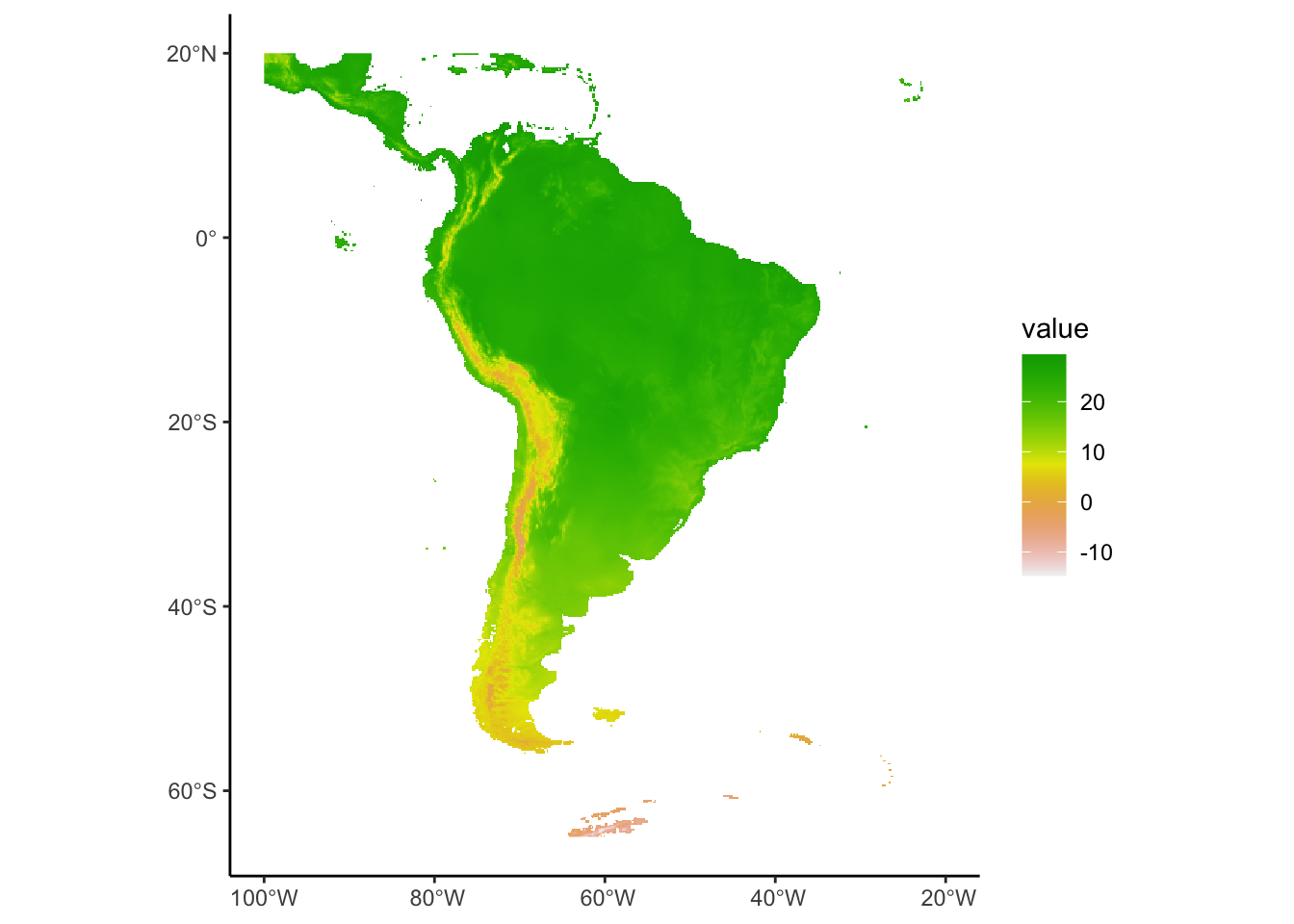

Okay we have data for every month, this is interesting but a lot to deal with, lets take the mean across all layers. We could also resample to make computation faster but the raster will become more pixelated.

avgtemp_SoAm_mean<-avgtemp_SoAm %>%
  mean()

ggplot()+
  geom_spatraster(data=avgtemp_SoAm_mean)+
  scale_fill_terrain_c()+
  theme_classic()

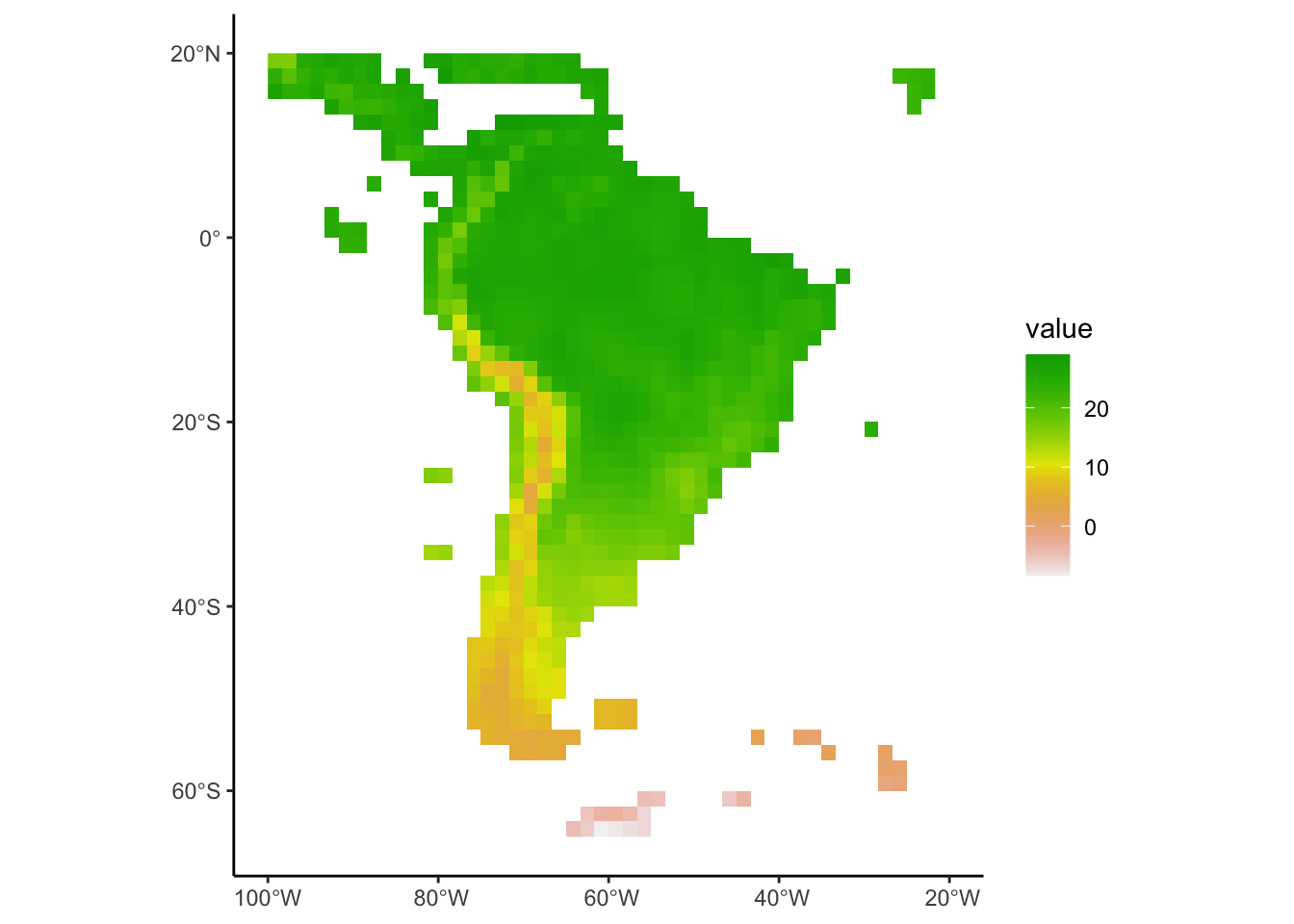

avgtemp_SoAm_mean_agg<-avgtemp_SoAm_mean %>%
  terra::aggregate(fact=10,fun="mean",na.rm=T)

ggplot()+
  geom_spatraster(data=avgtemp_SoAm_mean_agg)+
  scale_fill_terrain_c()+
  theme_classic()

Okay lets use this climate data to look at the average temperatures (across the whole year) in our shape file of countries. Lets try two methods, take the centroid of each country then extract the average temperature for that location or we can take the average values within each country then average across its extent.

Countries<-str_replace_all(SouthAmerica_subset$SOVEREIGNT,"France","French Guiana") # This is just to make it more correct for plotting later

countries_vect<-vect(SouthAmerica_subset)

centroids_SoAm<-countries_vect %>%
  centroids()

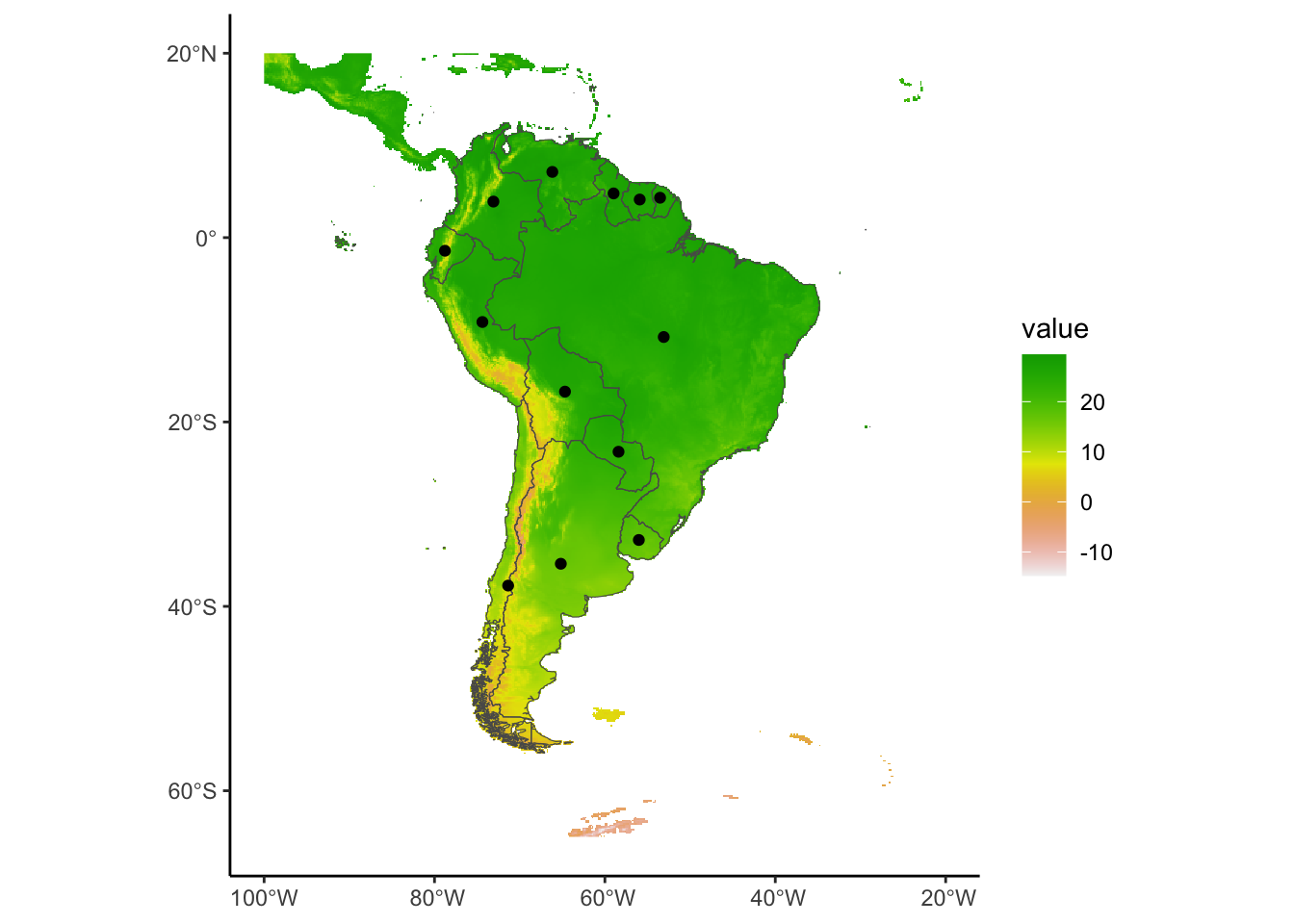

ggplot()+
  geom_spatraster(data=avgtemp_SoAm_mean)+
  geom_spatvector(data=countries_vect,fill=NA)+
  geom_spatvector(data=centroids_SoAm)+
  scale_fill_terrain_c()+
  theme_classic()

Centroid_temps<-avgtemp_SoAm_mean %>%
  extract(centroids_SoAm) %>%
  rename(Centroid=mean) %>%
  mutate(Countries=Countries)

Country_temps<-avgtemp_SoAm_mean %>%
  extract(countries_vect,mean)%>%
  rename(Extract=mean) %>%
  mutate(Countries=Countries)

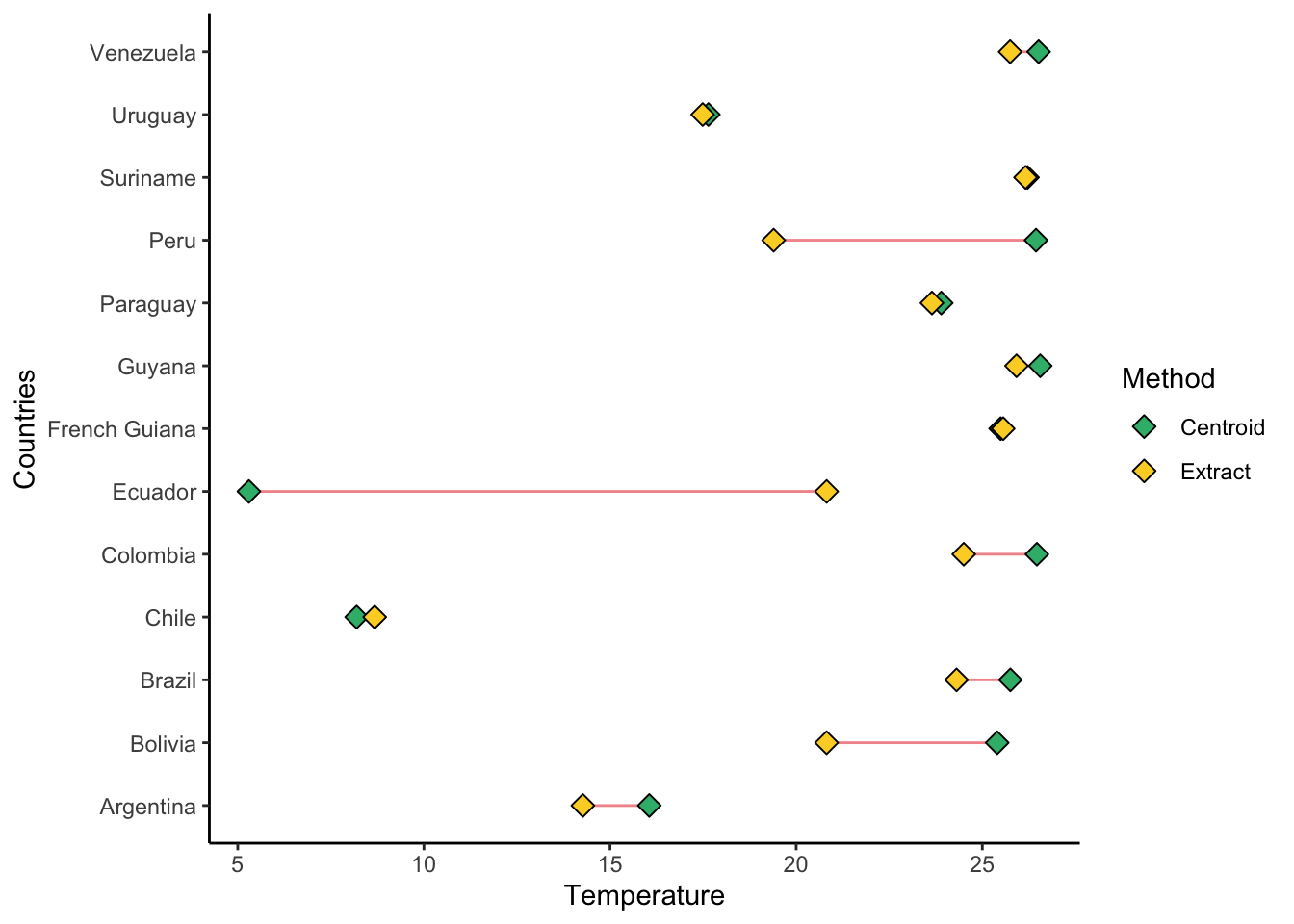

We can compare these different methods for finding a countries average temperature.

Temps<-Centroid_temps %>%
  full_join(Country_temps,by=c("ID","Countries")) %>%
  pivot_longer(-c(ID,Countries),names_to = "Method",values_to = "Temp")

Temps_Segment<-Centroid_temps %>%
  full_join(Country_temps,by=c("ID","Countries"))

ggplot(Temps)+
  geom_segment(data=Temps_Segment,aes(x = Countries, xend = Countries,
                                     y = Extract, yend = Centroid),
               colour="#f3969a")+
  geom_point(aes(x=Countries,y=Temp,fill=Method),size=3,shape=23)+
  scale_fill_manual(name="Method",values=c("#36b779","#fcd32c"))+
  labs(y="Temperature")+
  theme_classic()+
  coord_flip()

We can see some countries with little variation between the centroid and the overall mean. But some countries have a big difference (Ecuador for example). Obviously, we could do this in a multitude of different ways and it would depend on the objective that we had.

Load Local Raster Data

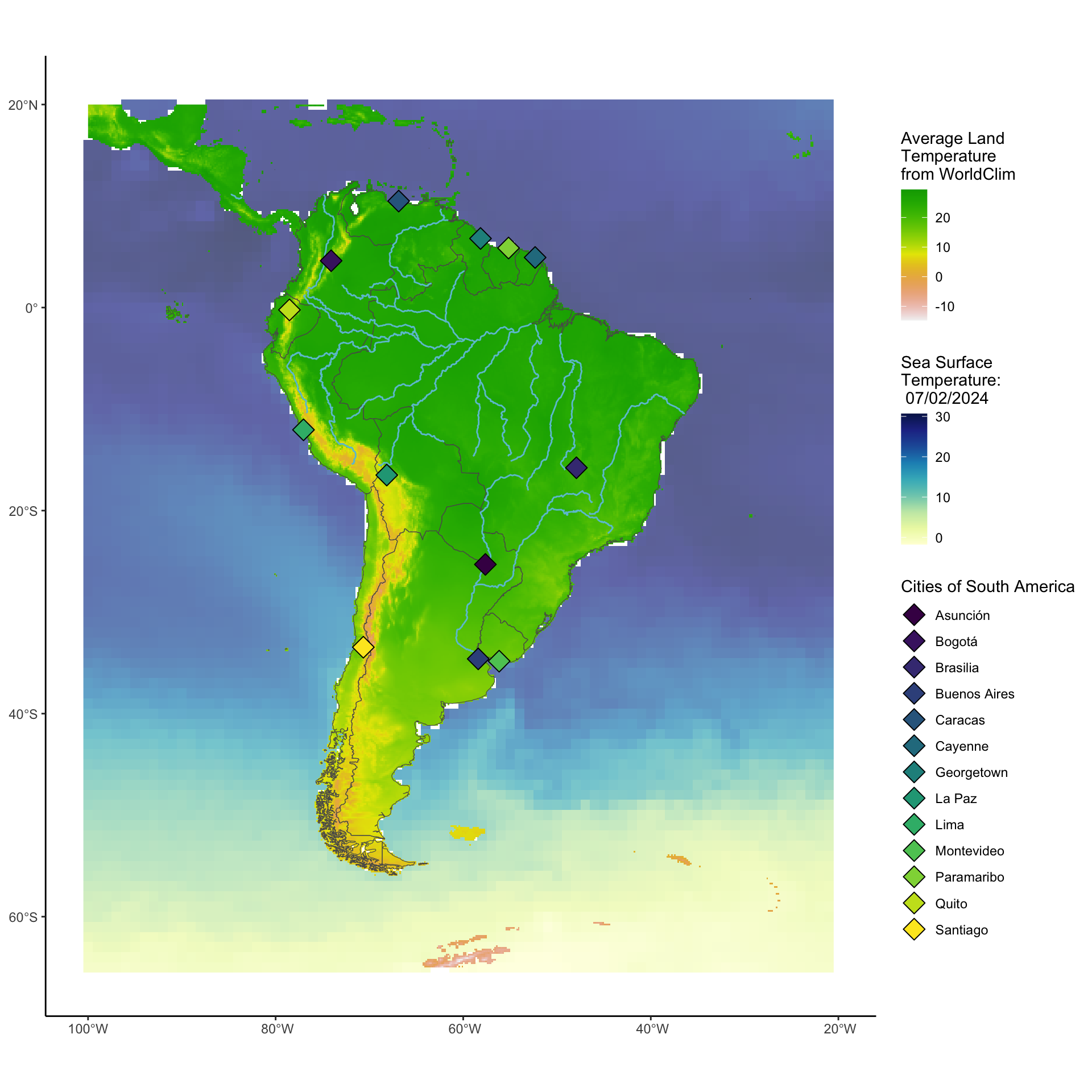

Now lets load in some local raster data and maybe we can combine all of the above methods together. I went to this website and downloaded a raster of Sea Surface Temperature from 20240207: https://www.cpc.ncep.noaa.gov/products/GIS/GIS_DATA/sst_oiv2/index.php.

SST<-rast("sst_io.20240207.tif")

SST
class       : SpatRaster
dimensions  : 181, 361, 1  (nrow, ncol, nlyr)
resolution  : 1, 1  (x, y)
extent      : -0.5, 360.5, -90.5, 90.5  (xmin, xmax, ymin, ymax)
coord. ref. : lon/lat WGS 84 (EPSG:4326)
source      : sst_io.20240207.tif
name        : sst_io.20240207
summary(SST)
 sst_io.20240207
 Min.   :-999.000
 1st Qu.:-999.000
 Median :   1.307
 Mean   :-325.907
 3rd Qu.:  21.861
 Max.   :  31.270

By inspecting the tif we can see there are some odd values (-999). This is likely to be a NA value so we should set them as NA. Also, the longitude is 0-360 rather than -180-180. This creates a pacific centric view, but we need to change this so we can extract the values we want.

NAflag(SST)<-c(-999)

summary(SST)
 sst_io.20240207
 Min.   :-1.800
 1st Qu.: 1.369
 Median :15.748
 Mean   :14.190
 3rd Qu.:26.281
 Max.   :31.270
 NA's   :21933

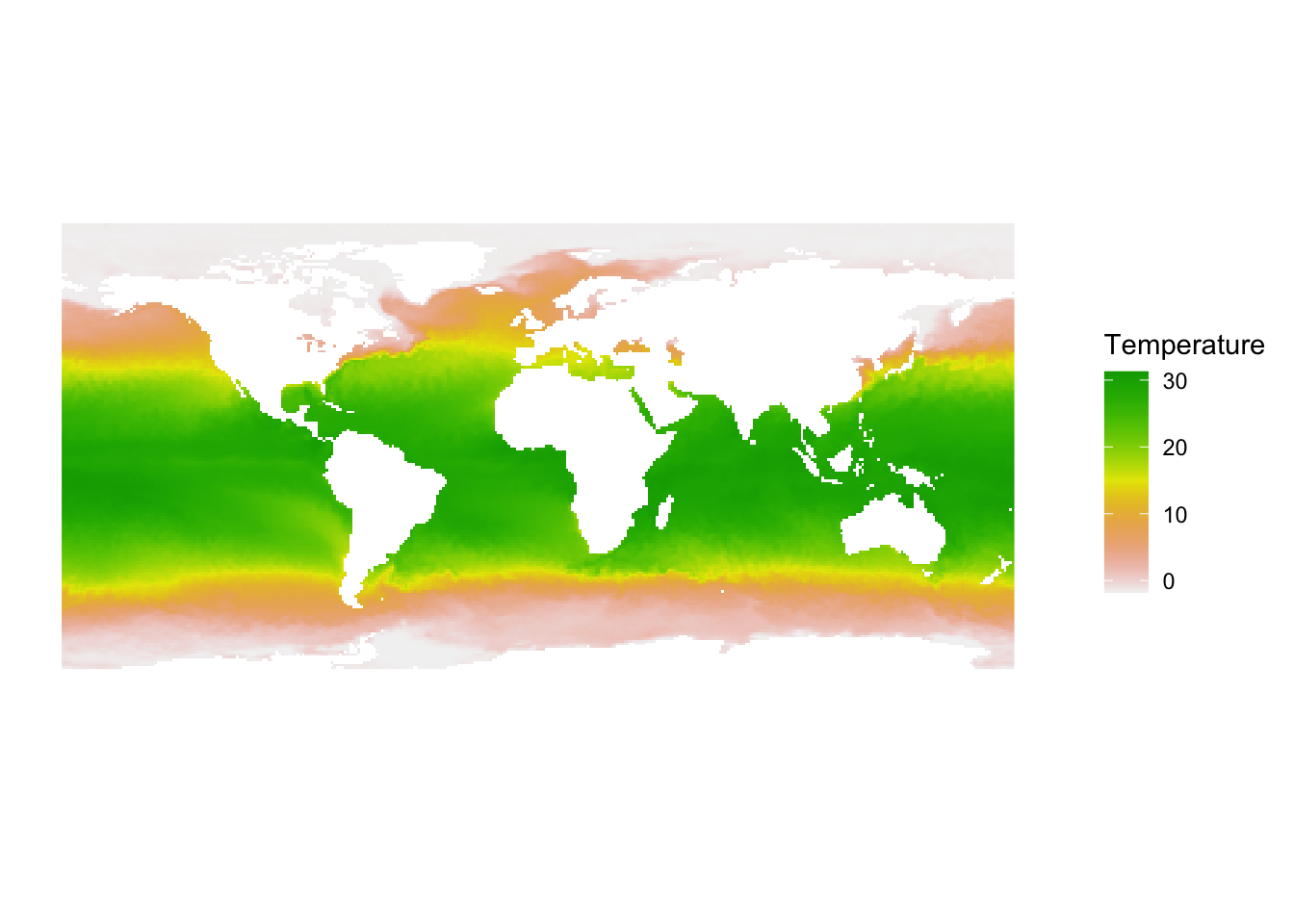

SST_Atlantic<-rotate(SST)

ggplot()+
  geom_spatraster(data=SST_Atlantic)+
  scale_fill_terrain_c()+
  labs(fill="Temperature")+
  theme_classic()

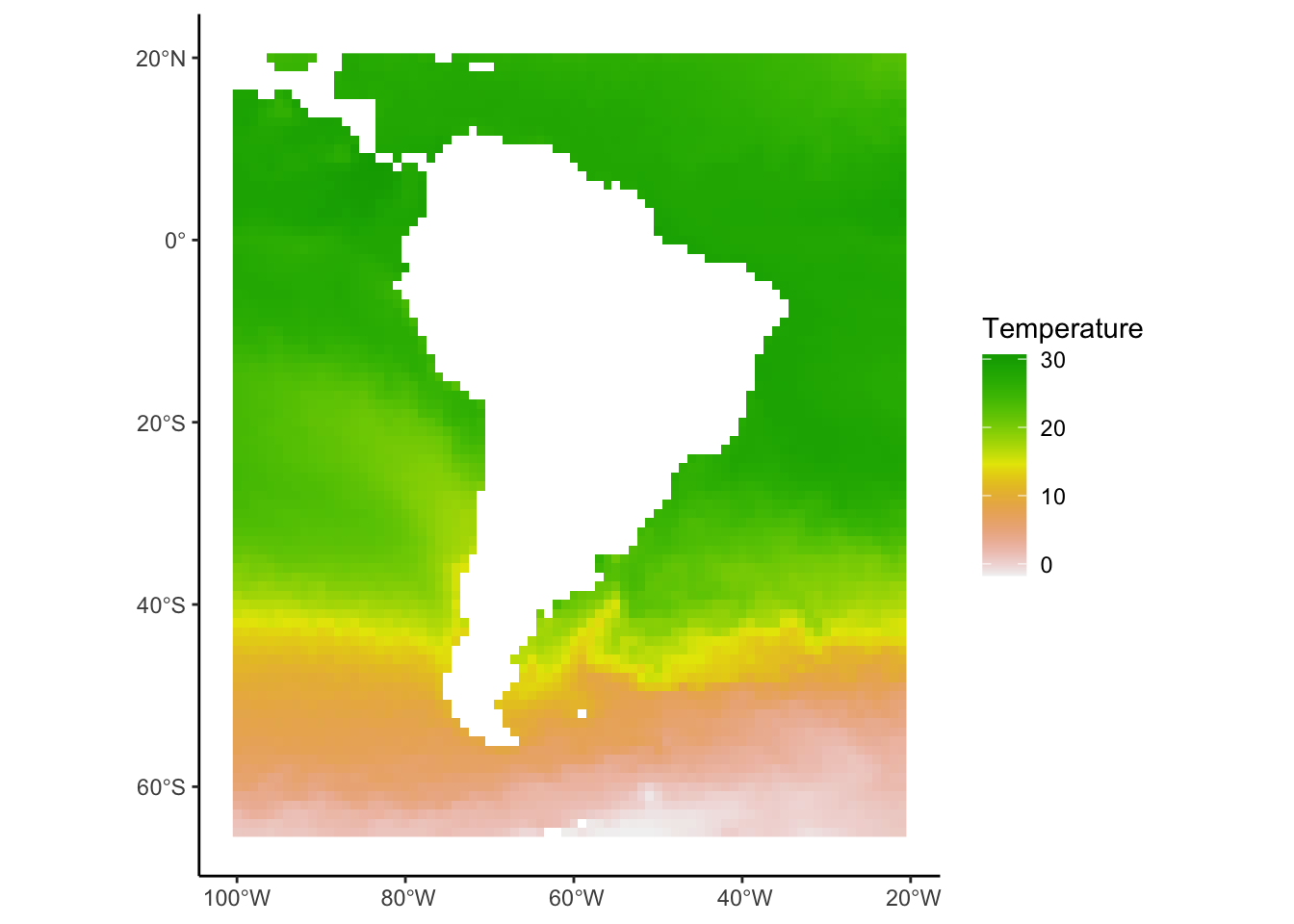

Again lets crop this to just South America.

SST_SoAm<-SST_Atlantic %>%
  crop(Box_terra)

ggplot()+
  geom_spatraster(data=SST_SoAm)+
  scale_fill_terrain_c()+
  labs(fill="Temperature")+
  theme_classic()

This looks good, now lets bring together all the things we have been looking at to create one map of South America. (all the temperatures are different ranges so don’t read too much into any of it!!!). We will be using multiple scales for the same aesthetic (fill) in this so we will use the ggnewscale package to reset scales.

library(ggnewscale)

ggplot()+
  geom_spatraster(data=SST_SoAm,alpha=0.7)+
  scale_fill_whitebox_c("deep",name="Sea Surface\nTemperature:\n 07/02/2024")+
  new_scale_fill()+
  geom_spatraster(data=avgtemp_SoAm_mean)+
  geom_spatvector(data=countries_vect,fill=NA)+
  scale_fill_terrain_c(name="Average Land\nTemperature\nfrom WorldClim")+
  new_scale_fill()+
  geom_sf(data=SouthAmerica_rivers,colour="#6cc3d5")+
  geom_sf(data=Points_sf,aes(fill=City),shape=23,size=5)+
  scale_fill_whitebox_d("viridi",name="Cities of South America")+
  theme_classic()+
  theme(legend.direction = "vertical",
        legend.position = "right")
